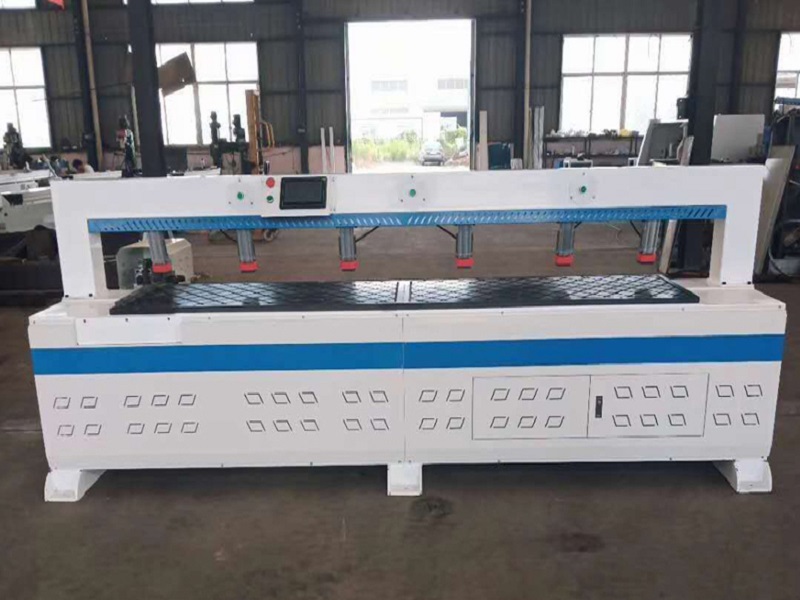

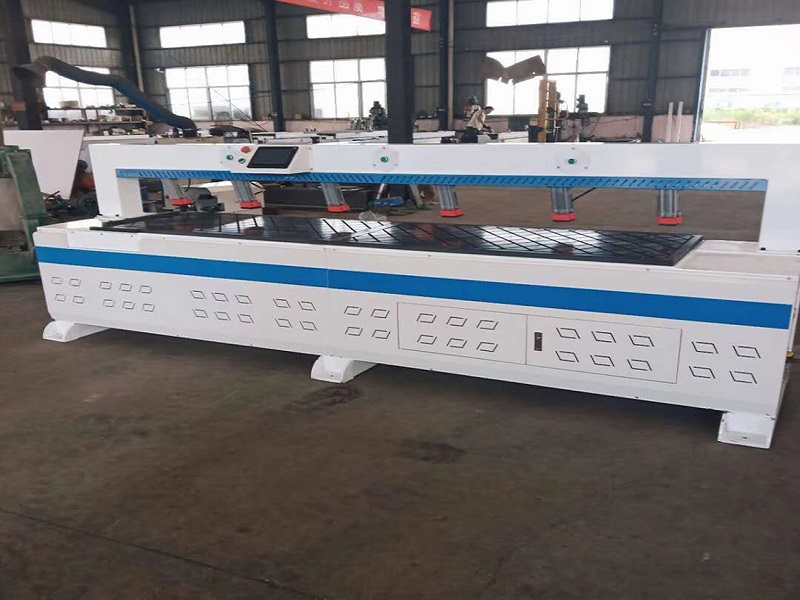

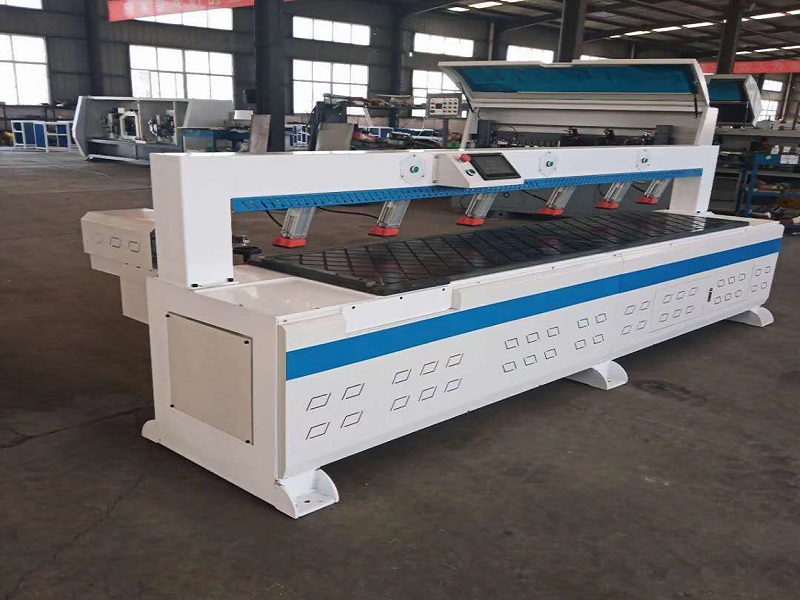

Side hole machine

FEATURES

Complete automatic side hole punching function through automatic detection;
With high accuracy and high processing efficiency, it solves the requirements of traditional drilling modes for skilled workers;
Simple operation: the operator has no requirements for academic qualifications, technology, industry experience, etc., and can be employed after 1 hour of training;
Put and play: No need to scan barcodes, put and play, easy and quick to clear and punch;
Wide compatibility: No software docking is required, and all CNC cutting machines are supported;
Intelligent punching: no need to pay attention to the size and placement direction of the board, laser scanning positioning, intelligently judging the punching position;
Multiple modes: free switching of multiple punching modes;

Parameters

Product name		Side hole machine
Equipment size		335017701500mm
Effective stroke of worktable		2650mm
Height of worktable		800mm
Spindle speed	24000rpm/min
Spindle motor power	2.2kw
Empty speed	150m/min
Processing speed	105m/min
motor	Customized double servo motor
sensor	German probe
Rack	1.5Helical tooth
Rail	TRV20
Spindle motor	Air-cooled spindle

PS: can be customized according to customer needs;
